Portable Power Distribution Center
One Source for All
Versatile, On-site Power Distribution Center

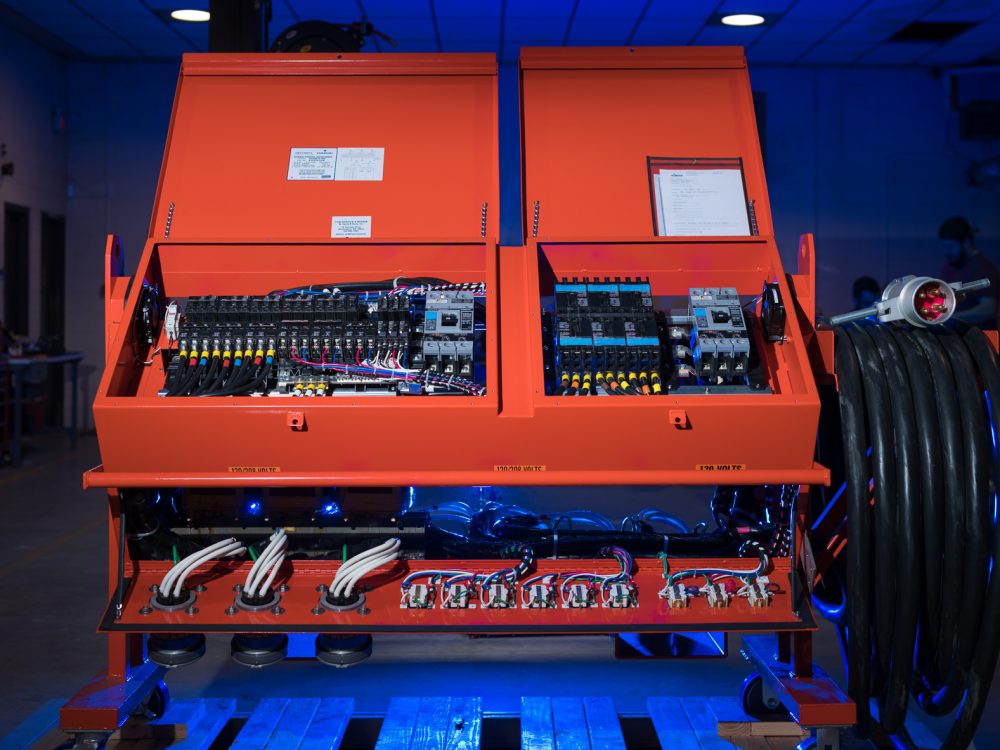

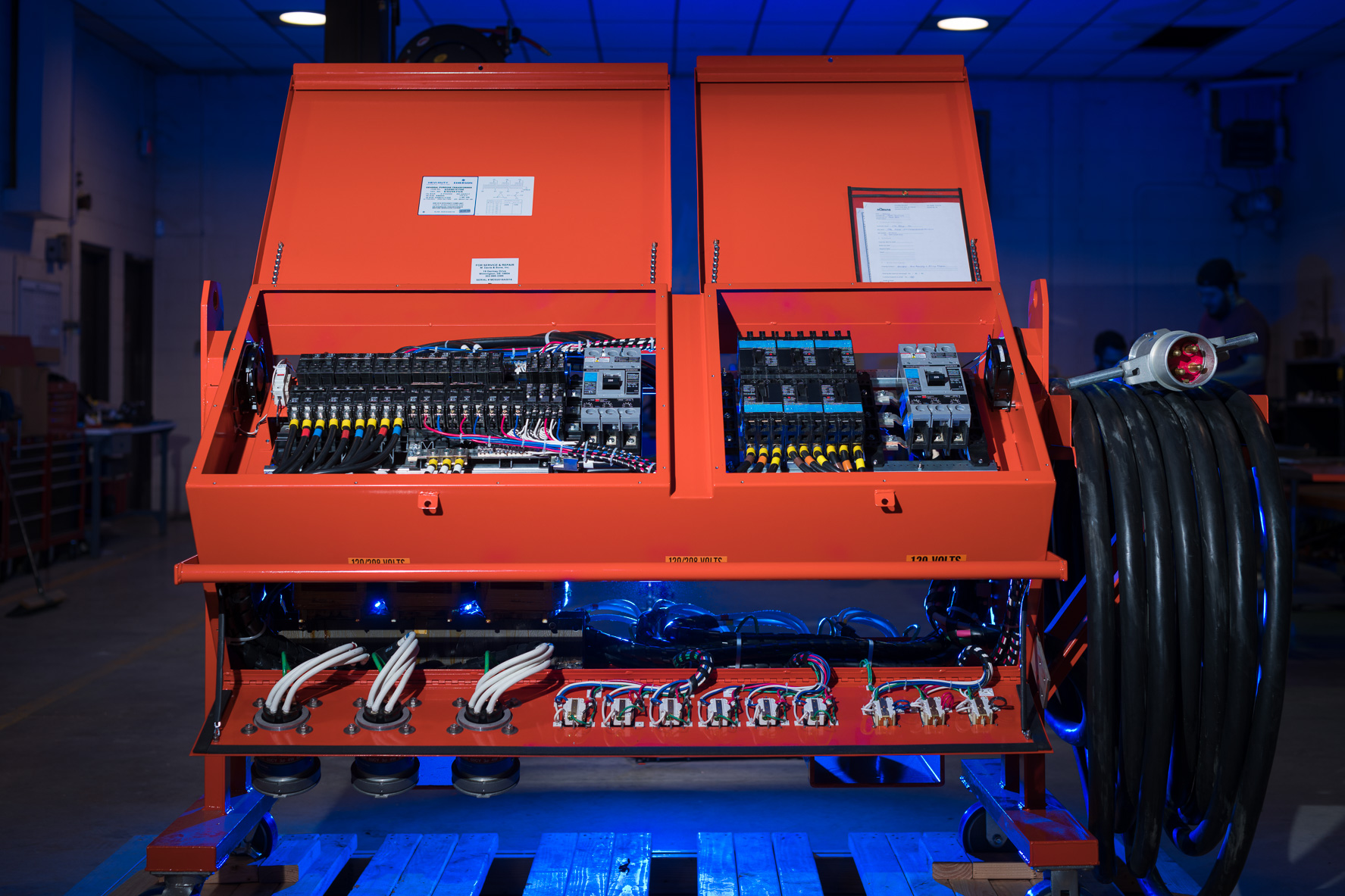

When your industrial construction project calls for safe and convenient low-voltage power distribution equipment, the VTi by M. Davis Portable Power Distribution Center (PPDC), is your unique and useful solution.
Built to provide low-cost power distribution for portable, temporary, or fast turnaround situations, the PPDC eliminates the need for expensive and time-consuming switch-rack construction at each new job site. When the project is complete, just move the PPDC to your next jobsite and be up-and-running immediately. Every PPDC is designed for safety and durability, and the versatile design can be custom-tailored for any application.
Unique Features Designed with Safety in Mind
- Slanted top design to shed rain
- NEMA-3R enclosure with weatherproof construction for indoor or outdoor service
- Meets all applicable NEC requirements
- Protected receptacles for personnel safety and cable strain relief
- Gravity-closed covers to prevent accidental exposure to weather
- Heavy duty 12-gauge steel exterior, finished with high visibility yellow or international orange powder coat finish
- Easily movable by castors, portable
crane or lift-truck
Customizable Options to Meet Your Unique Project Needs
Power input capacities up to 600A, 3-phase, 480V
Power output combinations including:
- 480V – 480V branch circuit breakers are physically partitioned from lower voltage circuits
- 240V
- 208V
- 120V – all 120V, 10-, 15-, 20-, and 30-amp branch circuits are protected by 5ma ground fault branch circuit breakers
Internal safety barriers to prevent accidental contact with hot circuits
